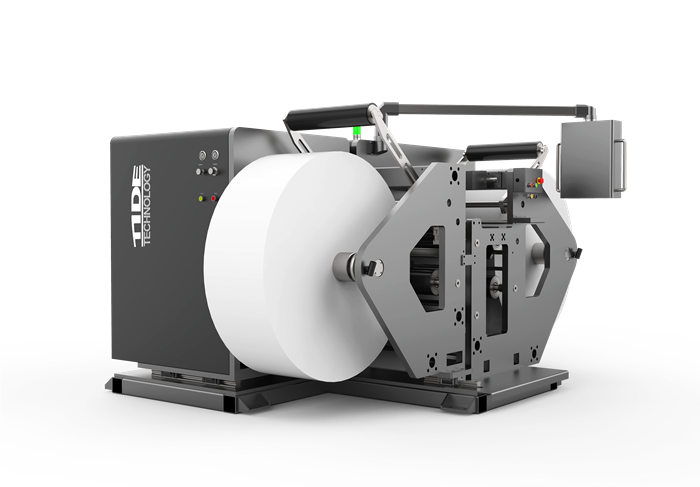

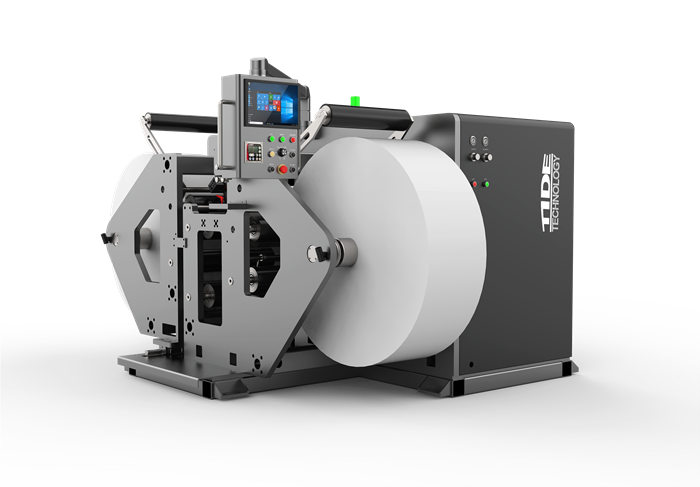

PR300 Digital Control Hi-speed Rewinder
CHARACTERISTICS
· Rewinding heavy paper and film sheet
· Splicing table width nip bars to fix the material
· Center rewinding mode
· Maintenance information on touch screen
· Loading with cantilever unwinding air shaft
· Splicing table width nip bars to fix the material
· Center rewinding mode
· Maintenance information on touch screen
· Loading with cantilever unwinding air shaft
· Servo driving system
· Cantilever air shaft for rewinding
· Self diagnosis
· Remote diagnosis and services
· Cantilever air shaft for rewinding
· Self diagnosis
· Remote diagnosis and services
TECHNICAL DATA
· Width of working face: 20mm-550mm(max)
· Diameter of unwinding: φ1300mm
· Thickness of material: 100g/㎡-500g/㎡,300-1000μm(max)
· Diameter of unwinding: φ1300mm
· Thickness of material: 100g/㎡-500g/㎡,300-1000μm(max)
· Diameter of rewinding: φ1300mm(max)
· Working speed: 300m/min(max)
· Working speed: 300m/min(max)
OPTION
* Intergration of inspection systems
* Slitting system
* Unloading the finished roll automatically
* Slitting system
* Unloading the finished roll automatically
* Stop by pictures accounting
* Link to ERP
* Link to ERP
