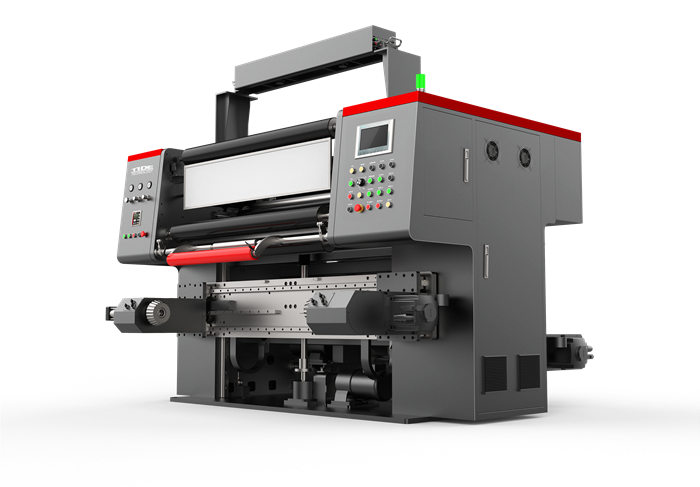

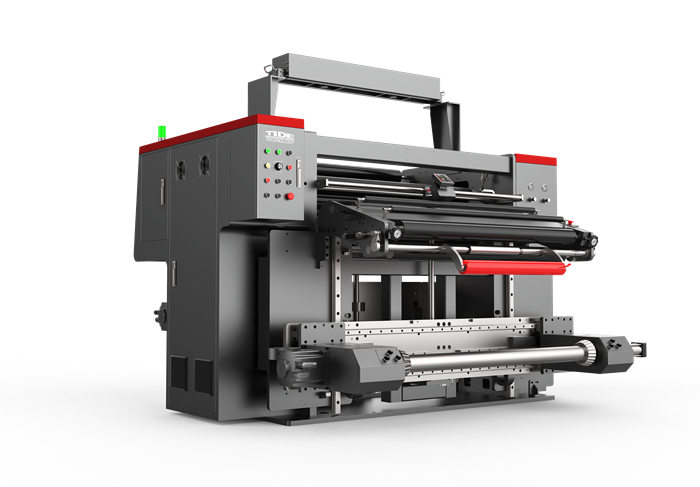

MR600 Digital Control Hi-speed Rewinder
CHARACTERISTICS
· Major for rewinding and inspecting film, paper and laminated film
· Separated tension control system
· Shaftless with air chucks for rewinding
· Maintenance information on touch screen
· Splicing table with nip bars to fix the material
· Separated tension control system
· Shaftless with air chucks for rewinding
· Maintenance information on touch screen
· Splicing table with nip bars to fix the material
· Servo driving system
· Center rewinding mode with gap roller
· Unwinding roll loading sami-automatically
· Self diagnosis
· Remote diagnosis and services
· Center rewinding mode with gap roller
· Unwinding roll loading sami-automatically
· Self diagnosis
· Remote diagnosis and services
TECHNICAL DATA
| Standard | Option | |
|---|---|---|
| · Width of working face: | 1300mm | 1300mm |
| · Diameter of rewinding: | φ800mm | φ1200mm |
| · Thickness of material: | 12-150μm | 6-120μm |
| · Diameter of rewinding: | φ800mm | φ1200mm |
| · Working speed: | 600m/min(max) | 700m/min(max) |
OPTION
* Intergration of inspection system
* Trim edge slitting system
* Easy tear of line
* Air hole on line
* Stop by pictures accounting
* Link to ERP
* Unwinding width adjusting automatically
* Trim edge slitting system
* Easy tear of line
* Air hole on line
* Stop by pictures accounting
* Link to ERP
* Unwinding width adjusting automatically
